Lima Locomotive Corporation

Photo Credit:
Richard Appel collection

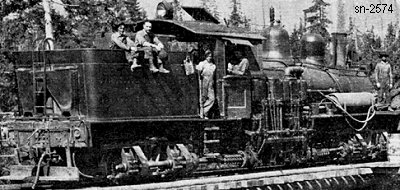

Shop Number 2574 - Built for: Hamilton Log. Co.
{2,013th Lima Built Shay}
Built:
7-11-1912
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
23,868 Lbs.
Factor of
Adhesion:

5.38
Maximum
Safe Speed:

19.4
Fuel Type:
Wood / Coal
Fuel Capacity:
2 Cords / 3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
104,015
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Hamilton Log. Co. #2, Hamilton, WA
(1917) Lyman Tbr. Co., (Soundview Tbr. Co.) #2, Hamilton, WA
(1937) Soundview Pulp Co. #3, Hamilton, WA
Disposition: (c1950) Scrapped
Additional Notes:
