Lima Locomotive Corporation

Photo Credit:
Denver Public Lib. collection

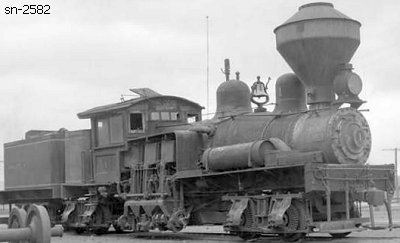

Shop Number 2582 - Built for: McGaffey Contracting Co.
{2,021st Lima Built Shay}
Built:
7-31-1912
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.21
 Maximum
Safe Speed:
19.0
Fuel Type:
Lignite / Wood
Fuel Capacity:
5 Tons / 2.5 Cords
 Water Capacity:
4,000 Gallons
Empty Weight:
As built
122,100
Owners:
McGaffey Contracting Co. #1, Perea, NM
(1917) McGaffey Co. #1, Perea, NM
(12-14-1929) Lutcher & Moore Lbr. Co., Albuquerque, NM
(3-28-1935) S. A. Compania Maderera de Durango, El Salto, Durango, Mexico
Disposition: Last known in Gomez Palacio, Durango, Mexico
Additional Notes:
SLc Survivor List
