Lima Locomotive Corporation

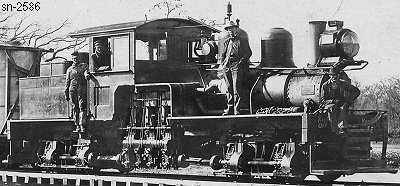

Photo Credit:
by unknown (c1912)
Shop Number 2586 - Built for: Scholten Brothers Cedar Co.
{2,025th Lima Built Shay}
(Includes new data after 2018 Shay book completed)
Built:
8-1-1912
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
170
Tractive Effort:
10,935 Lbs.
Factor of
Adhesion:

5.36
Maximum
Safe Speed:

10.7
Fuel Type:
Oil
Fuel Capacity:
300 Gals.
Water Capacity:
830 Gallons
Empty Weight:
As built
49,200
Owners:
Woodward, Wight & Co. (D), New Orleans, LA
Scholten Brothers Cedar Co. #1, Lometa, TX
(by 11-14-1919) Pfeuffer Cedar Co. #1, Lometa, TX
(8-1921) Consumers Supply Co., Houston, TX
(8-16-1921) Sold to unknown owner, Mexico
Disposition: Scrapped
Additional Notes:
