Lima Locomotive Corporation


Photo Credit:

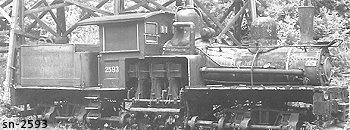

Left: by Town Comee (c2003)

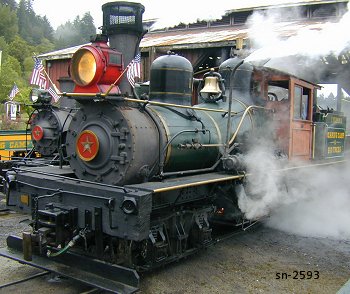

Top Right: David Thomas collection

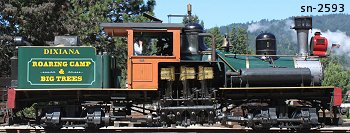

Bottom Right: by Robert David Grant (6-13-2012)
Shop Number 2593 - Built for: Alaculsy Lbr. Co.
{2,032nd Lima Built Shay}
Built:
10-15-1912
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.09
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,500
Owners:
Alaculsy Lbr. Co. #3 (2nd), Conasauga, TN
(1917) Tennga Lbr. Co. #3, Conasauga, TN
(3-1919) Southern Iron & Equip. Co. (D) #1466, Atlanta, GA
(8-22-1919) W. M. Ritter Lbr. Co., Smoky Mountain RY #3 (2nd), Proctor, NC
[36"] W. M. Ritter Lbr. Co. #3, McClure, VA
(1938) Coal Processing Corp., #3 (carried both #3 & #2593), Dixiana, VA
(1962) Roaring Camp & Big Trees Narrow Gauge RR #1 "DIXIANA", Felton, CA
Converted to oil burner
Disposition: operational @ Roaring Camp & Big Trees, Felton, CA
Additional Notes:
SLc Survivor List
