Lima Locomotive Corporation

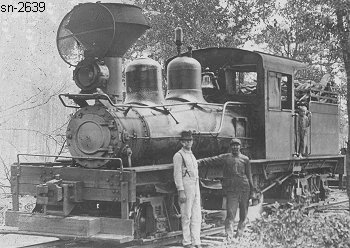

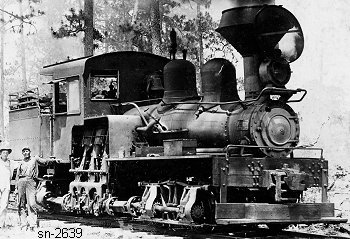

Photo Credit:
Left: Marc Reusser collection - Right: Robert Eagle collection (c1921)
Shop Number 2639 - Built for: Shore Lbr. Co.
{2,078th Lima Built Shay}
Built:
4-24-1913
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
12,865 Lbs.
Factor of
Adhesion:

4.87
Maximum
Safe Speed:

10.7
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,050 Gallons
Empty Weight:
As built
51,640
Owners:
Shore Lbr. Co. #4, Quitman, GA
J. M. Hemphill Lbr. Co. #1, Bexley, MS
(5-1922) Colmer-Green Lbr. Co. #4, Colgreen, MS
(7-1925) Barnes-Creary Supply Co. (D), Mobile, AL
(by 12-10-1925) T. A. Hatter & Son #4, Creola, AL
Disposition: Scrapped
Additional Notes: Shipped to: Quitman, GA
