Lima Locomotive Corporation

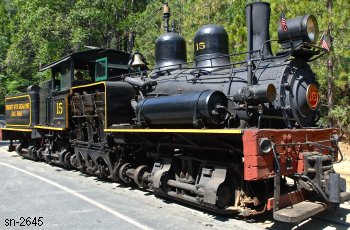

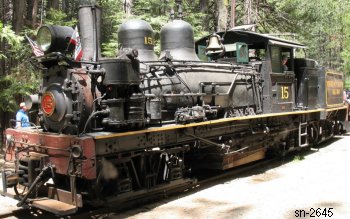

Photo Credit:
Both: by Gene Day (10-13-2013)
Shop Number 2645 - Built for: Sierra Nevada Wood & Lbr. Co.
{2,084th Lima Built Shay}
Built:
5-20-1913
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
5.27
 Maximum
Safe Speed:
17.2
Fuel Type:
Oil
Fuel Capacity:
1,000 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
98,920
Owners: (Includes new data after 2018 Shay book completed)
Norman B. Livermore & Co. (D), San Francisco, CA
Sierra Nevada Wood & Lbr. Co. #9, Truckee, CA
(1917) Hobart Estate Co. #9, Hobart Mills, CA

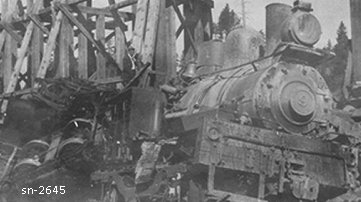

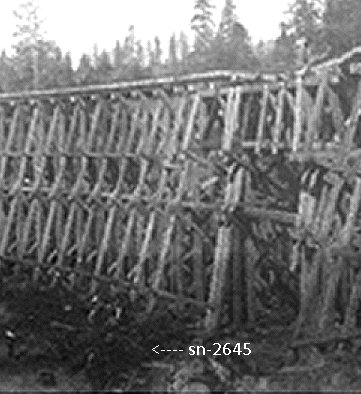

(1920's) Wrecked, fell from tall trestle near Hobart Mills
(1938) Hyman-Michaels Co. (D), San Francisco, CA
(1939) West Side Lbr. Co. #15, Tuolumne, CA
(1968) West Side & Cherry Valley RR #15, Tuolumne, CA
(1986) Static display Tuolumne, CA
(1988) Yosemite Mountain Sugar Pine RR, #15, Fish Camp, CA
Disposition: operational @ Yosemite Mountain Sugar Pine RR, #15, Fish Camp, CA
Additional Notes:
SLc Survivor List
