Lima Locomotive Corporation

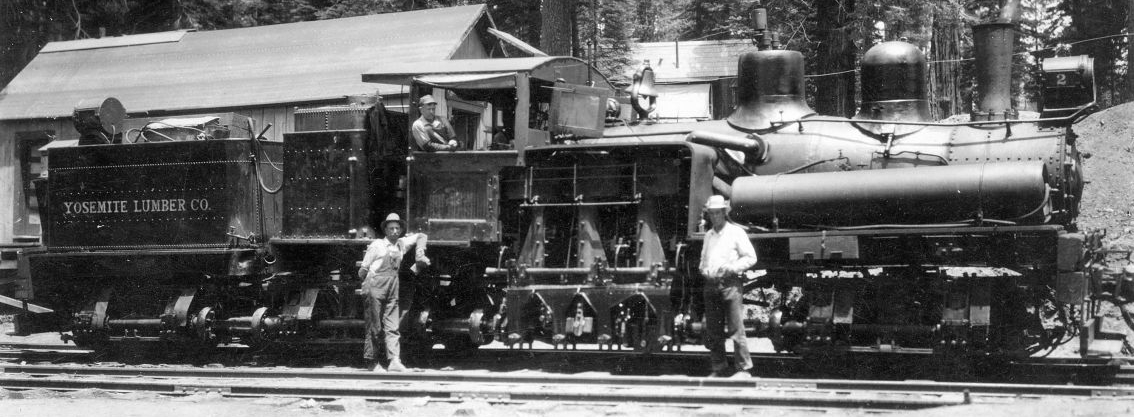

Photo Credit:
Martin E. Hansen collection
Shop Number 2660 - Built for: Yosemite Lbr. Co.
{2,099th Lima Built Shay}
Built:
5-17-1913
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
25,830 Lbs.
Factor of
Adhesion:

4.66
Maximum
Safe Speed:

15.1
Fuel Type:
Oil
Fuel Capacity:
1,000 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
100,450
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Yosemite Lbr. Co. #2, Merced Falls, CA
Yosemite Sugar Pine Lbr. Co. #2, Merced Falls, CA
(2-1943) M. Davidson (D) #2, Stockton, CA
(5-8-1943) For sale as-is-where-is, Merced Falls, CA
Disposition: (4-1947) Scrapped
Additional Notes: Shipped to: Merced,CA
