Lima Locomotive Corporation

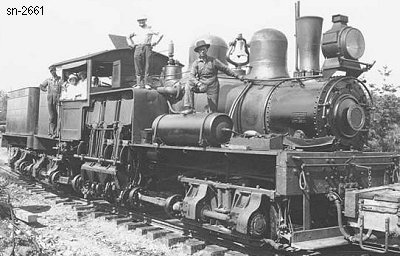

Photo Credit:
by Clark Kinsey (c1921)

Shop Number 2661	-	Built for: Schmick Handle & Lbr. Co.
{2,100th Lima Built Shay}

Built: 3-31-1913	Class: C 70-3	Trucks: 3	Cylinders: [#-Dia. x Stroke] 3 - 12 x 15
Gear Ratio: 2.25	Wheel Dia.: 36"	Gauge: std.	Boiler: [Style - Dia.] E.W.T. - 50"
Boiler Pressure: In Lbs. (PSI) 200	Tractive Effort: 30,375 Lbs.	Factor of Adhesion: 5.07	Maximum Safe Speed: 19.0
Fuel Type: Coal / Oil	Fuel Capacity: 5 Tons / 1,200 Gals.	Water Capacity: 3,000 Gallons	Empty Weight: As built 126,500
Owners: Schmick Handle & Lbr. Co. #1, Deadwater, ME Hofius Steel & Equip. (D), Seattle, WA (9-14-1918) Puget Sound Mills & Tbr. Co. #7, Twin, WA {Mill at Port Angeles, camps at Majestic, Murdock Creek, Twin} (10-1-1925) The Charles Nelson Co. #7, Piedmon, WA The Charles Nelson Co. #7, Sol Duc, WA (2-3-1926) Leased to: Irving-Hartley Log. Co., #7, Twin, WA (6-5-1927) Leased to: Crescent Log. Co., #7, Twin, WA (9-24-1928) Crescent Log. Co. #7, Twin Rivers, WA (1931) Crescent Log. Co. #7, Piedmont, WA Ozette Tbr. Co., Lake Ozette, WA (5-5-1947) Fibreboard Products, Inc. #7, Sol Duc, WA
Disposition: Scrapped
Additional Notes:
