Lima Locomotive Corporation

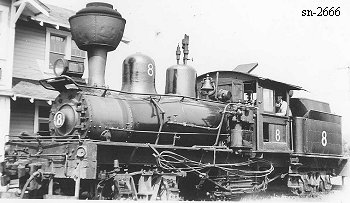

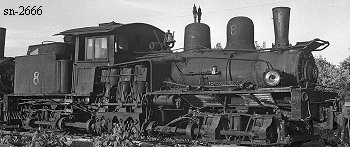

Photo Credit:
Both: Martin E. Hansen collection
Left: (8-27-1935) Right: 6-26-1943)
Shop Number 2666 - Built for: White Pine Cedar Co.
{2,105th Lima Built Shay}
Built:
7-2-1913
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.52
Maximum
Safe Speed:

17.1
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,560 Gallons
Empty Weight:
As built
76,900
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
White Pine Cedar Co. #1, Blueslide, WA
(1918) Spruce Production Div. (U. S. Army), Yaquina, OR
(1918) Warren Spruce Co.*, Yaquina Northern RR [SPRR #11], Yaquina, OR (assigned)
(10-1918) Spruce Production Corp. (U. S. Army), Yaquina, OR
(12-1918) Sent to Vancouver Barracks for sale, Vancouver, WA: for sale
(11-1920) Charles K. Spaulding Log. Co. (Spaulding-Miami Co. #8), Grand Ronde, OR
(9-1924) Oregon Coast Range Lbr. Co. #8, Grand Ronde, OR
(1926) Polk Operating Co. #8, Grand Ronde, OR
Disposition: Scrapped
Additional Notes: *Cost-plus contractor for Spruce Production Division (U. S. Army)
SPRR #11 was Spruce Production RR #, the designation used by Spruce Production Division
Converted to wood burner
