Lima Locomotive Corporation

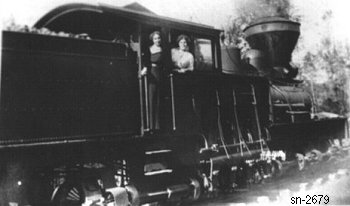

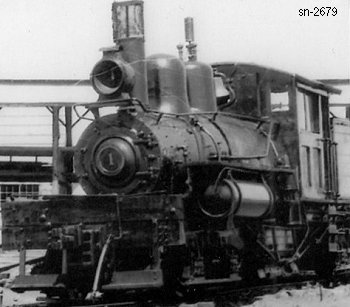

Photo Credit:
Both: Berry Cott collection
Shop Number 2679 - Built for: Dennis Canadian Lbr. Co.
{2,118th Lima Built Shay}
Built:
6-9-1913
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.61
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
82,800
Owners:
Dennis Canadian Lbr. Co. #1, Whitney, ONT, CAN
(12-21-1923) Hope Lbr. Co. Ltd. #1, Ruel, ONT, CAN
(9-27-1930) Pakesley Lbr. Co. Ltd., Key Valley RY #1, Pakesley, ONT, CAN
(1-24-1935) Standard Chemical Co. Ltd. #3, Fassett, QUE., CAN
(c1952) Beaver Charcoal Co., South River, ONT, CAN
(1957) Ray Industries, South River, ONT, CAN
(1965) Charles Matthews, Langstaff, ONT, CAN
(1966) Ontario Science Centre, Toronto, ONT, CAN (Shay remained at Langstaff)
Ontario Rail Association, Milton, ONT, CAN
(7-1986) Barry Mahon, Langstaff, ONT, CAN
(1990) Komoka Railway Museum, Komoka, ONT, CAN
Disposition: under restoration @ Komoka RY Museum, Komoka, ONT, CAN
Additional Notes:
SLc Survivor List
