Lima Locomotive Corporation

Photo Credit:
Lima ad (BP 5-1913)

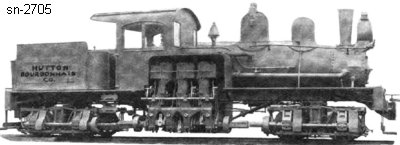

Shop Number 2705 - Built for: Lovelady Lbr. Co. (cancelled)
{2,144th Lima Built Shay}
Built:
5-20-1913
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
10,292 Lbs.
Factor of
Adhesion:

5.39
Maximum
Safe Speed:

10.7
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
45,600
Owners:
Lima Locomotive Works, Lima, OH, for stock after order cancelled
(11-10-1914) Hutton, Bourbonnais & Co. #1, Hickory, NC
(9-21-1923) Hutton, Bourbonnais & Co. #1, Gorge, NC
(12-17-1926) The Avondale Lbr. Co. #1, Stokes, SC
(by 10-1931) Dorchester Lbr. Co. #101, Badham, SC
Disposition: Scrapped
Additional Notes:
There are eight recorded variations on the name "Hutton, Bourbonnais & Co." Lima lettered the Shay as "H. B. & Co. #1"
