Lima Locomotive Corporation

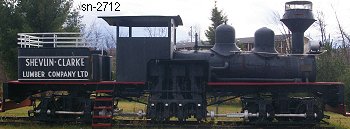

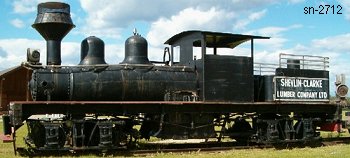

Photo Credit:
Left: by Ben Strom
Right: by Catherine Reilly (10-2010)
Shop Number 2712 - Built for: Shelvin-Clarke Co. Ltd.
{2,151st Lima Built Shay}
Built:
12-27-1913
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,292 Lbs.
 Factor of
Adhesion:
5.32
 Maximum
Safe Speed:
10.7
Fuel Type:
Wood
Fuel Capacity:
1 Cord
Water Capacity:
830 Gallons
Empty Weight:
As built
45,600
Owners:
Shevlin-Clarke Co. Ltd. #3, Flanders, Ont., CAN
(9-7-1945) Nipigon Lake Tbr. Co. #1, Sioux Lookout, Ont., CAN
Donald Clark Lbr. Co., Ontario, CAN
(1950) Dept. of Lands & Forests of Ontario, Ontario, CAN
(1950) Leased to: Caland Ore Co., Atikokan, Ontario, CAN.
(2-1963) Civic Center Museum and Historical Park, Atikokan, Ontario, CAN
Atikokan Centennial Museum, Atikokan, Ontario, CAN
Disposition: on display @ Atikokan Centennial Museum, Atikokan, Ont., CAN
Additional Notes: Shipped to: Maflower, Ont., CAN
SLc Survivor List
Converted to coal burner
(9-2008) Under restoration
