Lima Locomotive Corporation

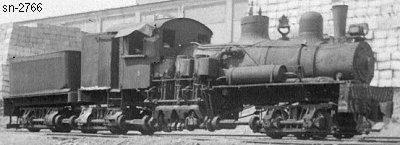

Photo Credit:
by unknown (c1947)
Shop Number 2766 - Built for: St. Lawrence Pulp & Lbr. Co.
{2,205th Lima Built Shay}
Built:
5-23-1914
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Diam:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.09
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
122,700
Owners:
St. Lawrence Pulp & Lbr. Corp. #3, Pabos Mills, Que., CAN
(3-1920) La Compagnie De Pulpe De Chicoutini, Chandler, Que., CAN
Bay Sulfite Co., Ltd., Chandler, Que., CAN
Bonaventura Pulp & Paper Co. #3, Chandler, Que., CAN
(1937) Gaspesia Sulphite Co. Ltd. #3, Chandler, Que., CAN
Disposition: (1952) Scrapped at Chandler, Que., CAN
Additional Notes: Shipped to: Chandler, Que., CAN
