Lima Locomotive Corporation

Photo Credit:
George R. Kadelak collection (BP 5-1915)

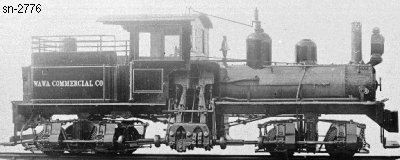

Shop Number 2776 - Built for: A. N. Rotholz
{2,215th Lima Built Shay}
Built:
5-13-1915
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]

ST. - 31.5"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
8,334 Lbs.
Factor of
Adhesion:

5.01
Maximum
Safe Speed:

10.1
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
730 Gallons
Empty Weight:
As built
34,596
Owners:
A. N. Rotholz, Waunta, Nicaragua; For:
Wawa Commercial Co., Waunta, Nicaragua
Disposition: Scrapped
Additional Notes: Exported thru H. S. Renshaw, Inc., New Orleans, La.
