Lima Locomotive Corporation

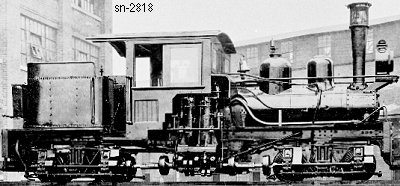

Photo Credit:
George R. Kadelak collection (BP 7-1915)
Shop Number 2818 - Built for: Harry V. Moore
{2,257th Lima Built Shay}
Built:
7-29-1915
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
3.077
Wheel Dia.:
22"
Gauge:
24"
Boiler:
[Style - Dia.]
ST. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
6,042 Lbs.
 Factor of
Adhesion:
4.74
 Maximum
Safe Speed:
8.5
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
500 Gallons
Empty Weight:
As built
23,600
Owners:
Harry V. Moore, Mansfield, OH
(by 1-24-1921) Cunningham Construction Co., Farmersburg,IN
(7-29-1922) Leased to: S. R. Adams Construction Co., Evansville, IN
(by 5-24-1923) Allen J. Parish, Albion, IL
Disposition: Scrapped
Additional Notes:
