Lima Locomotive Works, Inc.

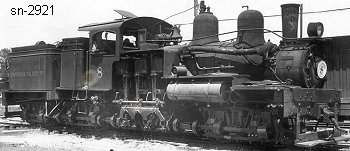

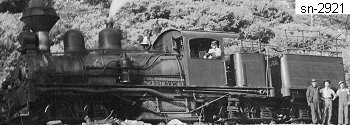

Photo Credit:
Left: Robert Eagle collection
Right: Marc Reusser collection
Shop Number 2921 - Built for: California Door Co.
{2,357th Lima Built Shay}
Built:
7-14-1917
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
25,820 Lbs.
 Factor of
Adhesion:
3.88
 Maximum
Safe Speed:
15.1
Fuel Type:
Wood
 Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
80,100
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
California Door Co., Diamond Springs, CA, For:
Diamond & Caldor RY #8, Diamond Springs, CA
Disposition: (1953) Scrapped
Additional Notes: Converted to oil burner
