Lima Locomotive Works, Inc.
.

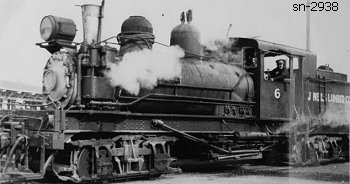

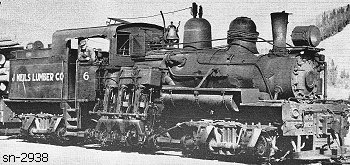

Photo Credit:
Left: George R. Kadelak collection
Right: by Philip C. Johnson (9-23-1950)
Shop Number 2938 - Built for: Hammond Lbr. Co.
{2,373rd Lima Built Shay}
Built:
7-27-1917
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.222
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,685 Lbs.
 Factor of
Adhesion:
5.11
Maximum
Safe Speed:
17.2
Fuel Type:
Oil
Fuel Capacity:
950 Gals.
Water Capacity:
1,750 Gallons
Empty Weight:
As built
97,200
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Hammond Lbr. Co., #551, Rainier, OR
(1918) Hammond Lbr. Co., #551, Kerry, OR
(c1924) Hammond Lbr. Co., #551, Kelso, WA
(7-18-1938) Hauser Construction Co. #551, Bingen, WA
(11-14-1939) Guy F. Atkinson Co. #551, Enumclaw, WA
Guy F. Atkinson Co. #551, Neah Bay, WA
(3-14-1941) J. Neils Lbr. Co. #6, Libby, MT
(late 1950's) Charles Bovey (railfan), Nevada City, MT
(5-1-1996) John Larkin (railfan), Escanaba, MI
Disposition: In private storage in Escanaba (Wells), MI, not available to visit.
Not officially affiliated with the Escanaba & Lake Superior RR
Additional Notes:
SLc Survivor List
