Lima Locomotive Works, Inc.


Photo Credit:

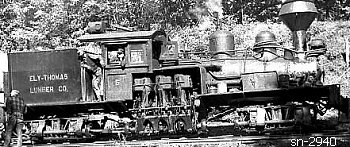

Top: Martin E. Hansen collection

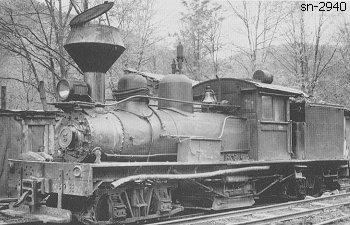

Left: by Richard J. Cook, Sr.
Shop Number 2940 - Built for: Pardee & Curtin Lbr. Co.
{2,375th Lima Built Shay}
Built:
10-20-1917
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.529
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
17,659 Lbs.
 Factor of
Adhesion:
4.60
 Maximum
Safe Speed:
13.6
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,500 Gallons
Empty Weight:
As built
65,200
Owners:
Pardee & Curtin Lbr. Co., Cherry & Hominy RR #12, Curtin, WV
(3-21-1947) Ely-Thomas Lbr. Co. #5, Jetsville, WV
(c1955) Harold Allen & Casimir Samborski (Railfans), Ann Arbor, MI
(1972) National RR Museum, Green Bay, WI
Disposition: on display @ National Railroad Museum, Green Bay, WI
Additional Notes:
SLc Survivor List
