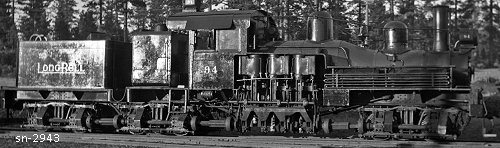

Lima Locomotive Works, Inc.

Photo Credit:
Martin E. Hansen collection (6-1942)
Shop Number 2943 - Built for: Longville Lbr. Co.
{2,378th Lima Built Shay}
Built:
10-4-1917
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
26,852 Lbs.
Factor of
Adhesion:

5.78
Maximum
Safe Speed:

17.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
3,000 Gallons
Empty Weight:
As built
129,200
Owners:
Longville Lbr. Co. (Long-Bell Lbr. Co.) #94, Longville, LA
(10-18-1921) Hudson River Lbr. Co. (Long-Bell Lbr. Co.), Louisiana & Pacific RY #94, DeRidder, LA
(11-11-1924) Weed Lbr. Co. (Long-Bell Lbr. Co.) #94, Weed, CA
Long-Bell Lbr. Co. #94, Tennant, CA
(5-1943) A. D. Schader (D), Yreka, CA
(by 5-15-1943) Yreka Western RR Co., Yreka Western RR #94, Yreka, CA
Disposition: (1946) Scrapped
Additional Notes: (c1925) Cyls. of 2943 bored to 12-1/2"
