Lima Locomotive Works, Inc.

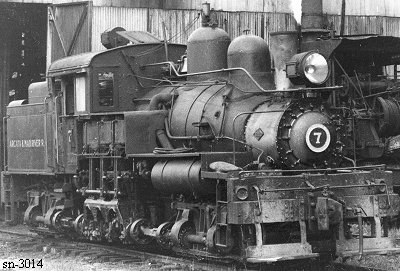

Photo Credit:
by W.A. Silverthorn from John Henderson collection
Shop Number 3014 - Built for: Lamson Log. Co.
{2,447th Lima Built Shay}
Built:
11-9-1918
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200,,
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.53
Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
81,000
Owners:
Lamson Log. Co., Inc. #1, Barco, WA
(8-12-1942) Northern Redwood Lbr. Co., Arcata & Mad River RR #7, Korbel, CA
(4-1-1956) Simpson Tbr. Co. Arcata & Mad River RR #7, Korbel, CA
(12-18-1957) City of Arcata #7, Arcata, CA
(1969) Loaned to: Simpson Tbr. Co.Arcata & Mad River RR #7, Korbel, CA for excursion service
(1986) Leased to: Northern Counties Log. Interpretive Association, Blue Lake, CA, stored at Glendale CA
(5-17-2004) Leased to: Timber Heritage Association #7, Eureka, CA, stored at Glendale CA (name change, still leased from City of Arcata)
(5-2007) Timber Heritage Association #7, Eureka, CA, stored at Glendale CA (purchased from City of Arcata)
Disposition: (4-2009) Stored ex Hammond Lbr. Co. roundhouse, Samoa, CA
Additional Notes:
SLc Survivor List
