Lima Locomotive Works, Inc.

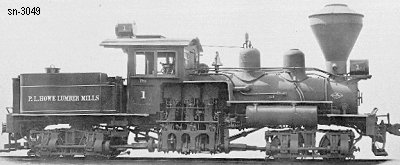

Photo Credit:
George R. Kadelak collection (BP 8-1919)
Shop Number 3049 - Built for: Eureka Lbr. Co.
{2,471st Lima Built Shay}
Built:
8-15-1919
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 37.25"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
14,639 Lbs.
Factor of
Adhesion:

4.99
Maximum
Safe Speed:

11.2
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
60,600
Owners:
Eureka Lbr. Co. #1, Eureka, MT, For:
P. L. Howe Lbr. Mills #1, Eureka, MT
(12-1922) Brooks-Scanlon Lbr. Co. #1, Eureka, MT
(1923) Plant not in operation
(2-12-1927) For sale
Disposition: Scrapped
Additional Notes:
