Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 1-1920)

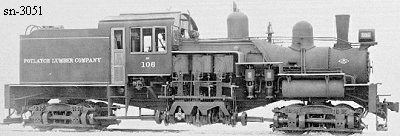

Shop Number 3051 - Built for: Potlatch Lbr. Co., Inc.
{2,473rd Lima Built Shay}
Built:
1-20-1920
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.53
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
27,342Lbs.
 Factor of
Adhesion:
5.38
 Maximum
Safe Speed:
16.9
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
118,000
Owners:
Potlatch Lbr. Co., Inc. #106, Potlatch, ID
(1931) Potlatch Forests Inc., Washington Idaho & Montana RY #106, Potlatch, ID
Disposition: (11-4-1940) Scrapped
Additional Notes:
