Lima Locomotive Works, Inc.

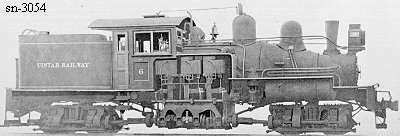

Photo Credit:
George R. Kadelak collection (BP 3-1920)
Shop Number 3054 - Built for: Uintah RY
{2,476th Lima Built Shay}
Built:
2-3-1920
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
33"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
21,879 Lbs.
 Factor of
Adhesion:
5.17
Maximum
Safe Speed:
17.8
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,500 Gallons
Empty Weight:
As built
87,800
Owners:
Uintah RY Co., Uintah RY #6, Atchee, CO
(10-24-1920) Wrecked, repaired
(1-5-1923) Wrecked, repaired
(5-5-1927) Feather River Lbr. #3 (2nd), Delleker, CA
(3-30-1945) Hyman Michaels Co. (D), San Francisco, CA
(3-30-1945) For sale at Delleker, CA
Disposition: Scrapped
Additional Notes: In October of 1933, Uintah RY Co. used the frame and many other parts from sn-1513, along with a new boiler from Lima, to build the Uintah RY's No. 7; even assigning an invalid Lima shop number of 3054P to their Shay, which has also caused confusion about the history of the real sn-3054.
