Lima Locomotive Works, Inc.

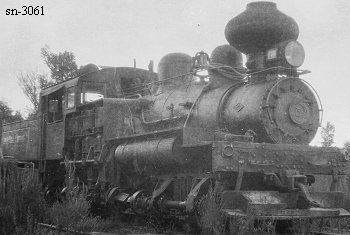

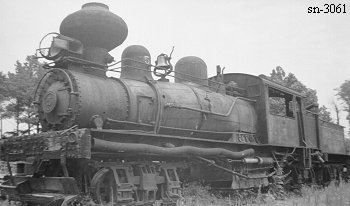

Photo Credit:
Left: by William H. B. Jones (7-21-1936)
Right: by William H. B. Jones (1930)
Both: from John Morgan collection
Shop Number 3061 - Built for: Long-Bell Lbr. Co.
{2,483rd Lima Built Shay}
Built:
1-23-1920
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
5.03
 Maximum
Safe Speed:
20.9
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
3,000 Gallons
Empty Weight:
As built
148,400
Owners:
Long-Bell Co. (Long-Bell Lbr. Co.) #5, Quitman, MS
(11-1-1922) Long-Bell Lbr. Co. #5, Quitman, MS
(by 1936) Stored in Quitman, MS
Disposition: (after 1937) Scrapped at Quitman, MS
Additional Notes:
