Lima Locomotive Works, Inc.

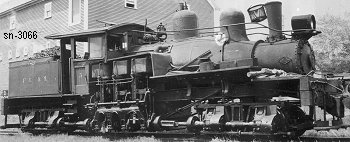

Photo Credit:
Left: George R. Kadelak collection - Right: John Henderson collection (1935)
Shop Number 3066 - Built for: Woodstock Lbr. Co.
{2,487th Lima Built Shay}
Built:
12-23-1919
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.77
Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
86,600
Owners:
Woodstock Lbr. Co., Beebe River RR #5, Beebe River, NH
(5-1-1924) Draper Corp. #5, Beebe River, NH
(10-31-1935) The Parker-Young Co., East Branch & Lincoln RR #5, Lincoln, NH
(10-6-1946) Marcalus Mfg. Co. East Branch & Lincoln RR #5 , Lincoln, NH
(1950) Franconia Paper Co., East Branch & Lincoln RR #5, Lincoln, NH
(1952) E. M. Clark, (railfan) #5, Lincoln, NH
(1961) Clark's Trading Post, White Mountain Central RR #5, North Woodstock, NH
Disposition: stored @ White Mountain Central RR, #5, North Woodstock, NH
Additional Notes:
The builder's plate from scrapped sn-2958 is displayed at Clark's Trading Post.
