Lima Locomotive Works, Inc.

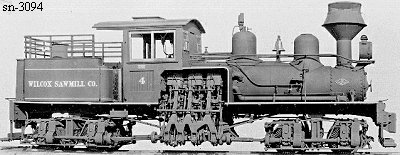

Photo Credit:
George R. Kadelak collection (BP 8-1920)
Shop Number 3094 - Built for: D. L. Fair Lbr. Co. (cancelled)
{2,515th Lima Built Shay}
Built:
8-5-1920
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 6 x 12
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
8,235 Lbs.
Factor of
Adhesion:

6.78
Maximum
Safe Speed:

11.2
Fuel Type:
Coal
Fuel Capacity:
1 Ton
Water Capacity:
800 Gallons
Empty Weight:
As built
46,300
Owners:
Lima Locomotive Works, Inc., Lima, OH, for stock after order cancelled
Dibbell Mineral Co. #1, Penland, NC
(2-1922) Lima Locomotive Works, Inc., Lima, OH
(8-12-1922) Wilcox Saw Mill Co. #4, Flatwood, AL
Disposition: (1932) Scrapped at Flatwood, AL
Additional Notes:
Originally ordered & cancelled by Woodward, Wight & Co. (D), For: D. L. Fair Lbr. Co., Louisville, MS
