Lima Locomotive Works, Inc.

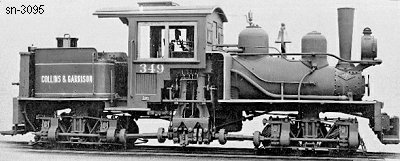

Photo Credit:
George R. Kadelak collection (BP 8-1920)
Shop Number 3095 - Built for: Collins & Garrison
{2,516th Lima Built Shay}
Built:
8-5-1920
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
4,844 Lbs.
Factor of
Adhesion:

6.25
Maximum
Safe Speed:

10.6
Fuel Type:
Coal
Fuel Capacity:
1 Ton
Water Capacity:
800 Gallons
Empty Weight:
As built
46,300
Owners:
Collins & Garrison #349, Carrolton, AL, refused and returned on account of slow delivery
Lima Locomotive Works, Inc., Lima, OH; held for Woodward, Wight & Co.
(3-1923) [Std.] Woodward, Wight & Co. (D), New Orleans, LA
(3-1923) Vestal Lbr. & Mfg. Co. #4, Duff, TN
Disposition: Scrapped
Additional Notes:
