Lima Locomotive Works, Inc.

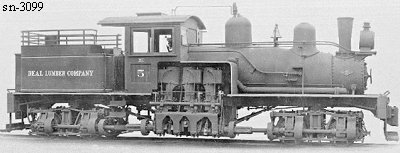

Photo Credit:
George R. Kadelak collection (BP 5-1920)
Shop Number 3099 - Built for: Deal Lbr. Co.
{2,520th Lima Built Shay}
Built:
5-12-1920
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
std
Boiler:
[Style - Dia.]

E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
14,316 Lbs.
Factor of
Adhesion:

5.60
Maximum
Safe Speed:

16.8
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
66,800
Owners:
Woodward, Wight & Co. (D), New Orleans, LA
Deal Lbr. Co. #5, Buhl, AL
(2-1925) Sipsey Valley Lbr. Co. #15, Buhl, AL
(3-23-1931) Still have
Disposition: Scrapped
Additional Notes: (3-23-1931) Lima visit at Buhl note; All 5 Shays are on hand (852, 1576, 2010, 2385, 3099)
