Lima Locomotive Works, Inc.

Photo Credit:

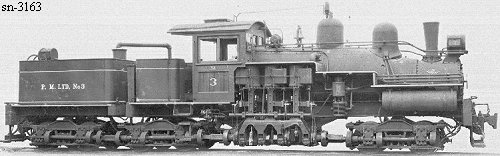

Top: George R. Kadelak collection (BP 2-1921)

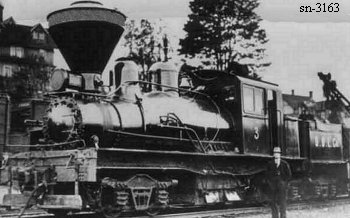

Lower Left: George R. Kadelak collection (1930's) Lower Right: "Logging By Rail" by Robert D. Turner
Shop Number 3163 - Built for: Pacific Mills Ltd.
{2,581st Lima Built Shay}
Built:
2-25-1921
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
26,820 Lbs.
Factor of
Adhesion:

5.26
Maximum
Safe Speed:

15.1
Fuel Type:
Coal
Fuel Capacity:
3.5 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
113,600
Owners:
Pacific Mills Ltd. #3, Ocean Falls, BC, CAN
Mayo Lbr. Co. (D), Paldi, BC, CAN
Export Lbr. Co. #3, Sahtlam, BC, CAN
(3-26-1925) Bloedel, Stewart & Welch, Ltd. #3, Great Central, BC, CAN
(1925-1926) Leased to: Great Central Sawmills, Ltd. #3, Great Central, BC, CAN
(11-20-1933) Deep Bay Log. Co. #3, Fanny Bay, BC, CAN
(1941) Canadian Forest Products Ltd. #98, Englewood, BC, CAN
Disposition: (1973) Scrapped

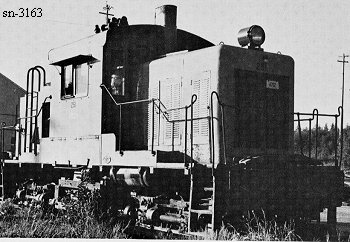

Additional Notes: (1951) rebuilt by Tyee Machinery Co., as a 2- truck diesel for Canadian Forest Products Ltd. #98 later #251 (photo above as #251)
