Lima Locomotive Works, Inc.

Photo Credit:

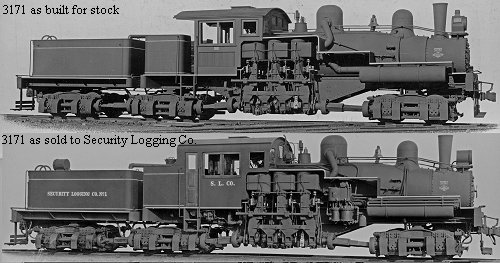

Martin E. Hansen collection (1922 both BPs)
Shop Number 3171 - Built for: Lima Locomotive Works, Inc. (built for stock)
{2,589th Lima Built Shay}
Built:
6-1-1922
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
5.28
 Maximum
Safe Speed:
20.9
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
156,000
Owners:
Lima Locomotive Works, Inc. #1, Lima, OH; built for stock
(8-19-1922) Security Log. Co. #1, Carnation, WA
Seattle Lbr. & Cedar Co. #8, Bellingham, WA
(by 8-18-1927) Puget Sound Sawmills & Shingle Co. #280, Concrete, WA
(9-7-1938) Puget Sound Pulp & Tbr. Co. #8, Cedar Lake, WA [road number changed by grinding out 2 & 0]
(3-6-1941) St. Paul & Tacoma Lbr. Co. #8, Kapowsin, WA
(11-22-1949) Out of service

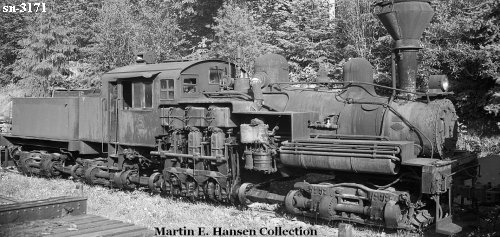

Disposition: Scrapped after photo below was made.
Additional Notes:
