Lima Locomotive Works, Inc.
Photo Credit:

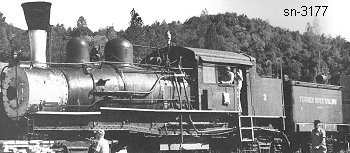

Left: by Richard W. Appel

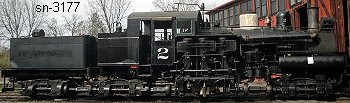

Right: by Jeff Terry (2003)
Shop Number 3177 - Built for: Hutchinson Lbr. Co.
{2,595th Lima Built Shay}
Built:
2-22-1922
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
40,407 Lbs.
 Factor of
Adhesion:
5.17
Maximum
Safe Speed:
20.9
Fuel Type:
Oil
Fuel Capacity:
1,500 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
175,000
Owners:
Hutchinson Lbr. Co. #2, Feather Falls, CA
(4-1927) Feather River Pine Mills Inc. #2, Feather Falls, CA
(1939) Feather River RY #2, Feather Falls, CA
Georgia-Pacific Corp., Feather River RY #2, Feather Falls, CA
State of California, Sierra RR #2, Oroville, CA; for display at Oroville Dam
Stored at Sierra RR, Jamestown, CA
Railtown 1897 State Historical Park, Jamestown, CA
Disposition: operational @ Railtown 1897 State Historic Park, Jamestown, CA
Additional Notes:
SLc Survivor List
