Lima Locomotive Works, Inc.

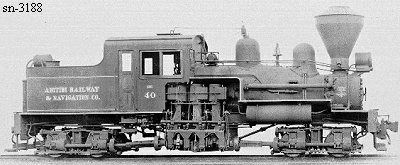

Photo Credit:
George R. Kadelak collection (BP 9-1922)
Shop Number 3188 - Built for: Abitibi RY & Navigation Co.
{2,605th Lima Built Shay}
Built:
9-2-1922
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.85
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
82,000
Owners:
Abitibi Power & Paper Co., Abitibi RY & Navigation Co. #40, Iroquois Falls, Ontario, CAN
(1-1932) Leased to: Dominion Construction Co. #40, Fraserdale, Ontario, CAN
Disposition: Scrapped
Additional Notes:
