Lima Locomotive Works, Inc.

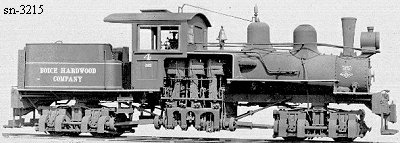

Photo Credit:
George R. Kadelak collection (BP 5-1923)
Shop Number 3215 - Built for: Boice Hardwood Co.
{2,632nd Lima Built Shay}
Built:
5-26-1923
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 37.25"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
14,639 Lbs.
Factor of
Adhesion:

4.68
Maximum
Safe Speed:

11.2
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
55,600
Owners:
Boice Hardwood Co. #4, Hartford, TN
(7-29-1936) The Hardwood Sales Co. #4, Charleston, WV
Disposition: Scrapped
Additional Notes:
