Lima Locomotive Works, Inc.

Photo Credit:
John Henderson collection

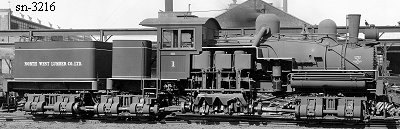

Shop Number 3216 - Built for: Northwestern Lbr. Co.
{2,633rd Lima Built Shay}
Built:
8-28-1923
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.29
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
128,900
Owners:
North West Lbr. Co. Ltd. #1 (2nd), Green Court, Alberta, CAN
Disposition: Scrapped
Additional Notes: (5-22-1933) Likely stored at Canadian National Railways, Green Court, Alberta, CAN
