Lima Locomotive Works, Inc.
Photo Credit:

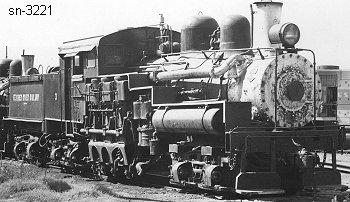

Left: by Jack Holst

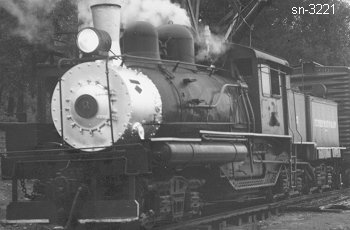

Right: by Dave Braun (10-1966)
Shop Number 3221 - Built for: Hutchinson Lbr. Co.
{2,638th Lima Built Shay}
Built:
7-14-1923
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
40,407 Lbs.
Factor of
Adhesion:

5.19
Maximum
Safe Speed:

20.9
Fuel Type:
Oil
Fuel Capacity:
1,500 Gals.
Water Capacity:
4,000 Gallons
Empty Weight:
As built
173,800
Owners:
Hutchinson Lbr. Co. #3, Feather Falls, CA
(5-6-1927) Feather River Pine Mills, Inc. #3, Feather Falls, CA
(1939) Feather River RY #3, Feather Falls, CA
(1955) Georgia-Pacific Corp., Feather River RY #3, Feather Falls, CA
(5-1967) Pacific Southwest RY Museum Association Inc., San Diego, CA
Pacific Southwest RY Museum Association Inc., Campo, CA
(10-1998) State of West Virginia, Cass Scenic RR #11, Cass, WV
(5-2001) Converted to coal burner
Disposition: Operational @ Cass Scenic RR, Cass, WV
Additional Notes:
SLc Survivor List
