Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 9-1923)

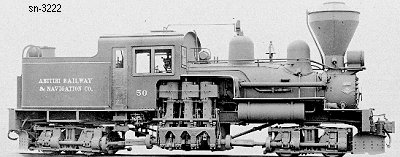

Shop Number 3222 - Built for: Abitibi RY & Navigation Co.
{2,639th Lima Built Shay}
Built:
9-21-1923
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

6.35
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
85,400
Owners:
Abitibi Power & Paper Co., Abitibi RY & Navigation Co. #50, Iroquois Falls, Ontario, CAN
Disposition: Scrapped
Additional Notes:
