Lima Locomotive Works, Inc.
Photo Credit:

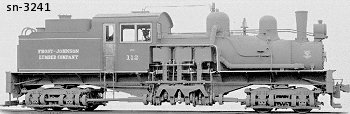

Left: by Thomas Lawson Jr.

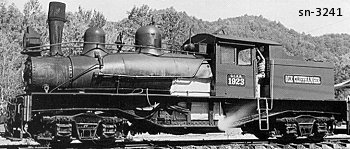

Right: George R. Kadelak collection (BP 10-1923)
Shop Number 3241 - Built for: Frost-Johnson Lbr. Co.
{2,658th Lima Built Shay}
Built:
10-17-1923
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.22
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,976 Lbs.
 Factor of
Adhesion:
5.91
Maximum
Safe Speed:
19.3
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
2,500 Gallons
Empty Weight:
As built
116,900
Owners:
Frost-Johnson Lbr. Co., Mansfield RY & Transportation Co. #112, Mansfield, LA
(4-14-1926) Union Saw Mill Co., Louisiana & Pine Bluff RY #112, Huttig, AR
(6-6-1935) Frost Lbr. Ind., Inc. #112, Nacogdoches, TX
(9-1950) Conasauga River Lbr. Co. #112, Conasauga, TN
(1966) Graham County RR, Bear Creek Scenic RR #1923 "OLE CLIFFHANGER", Robbinsville, NC
(3-1972) Oregon Pacific & Eastern RY #112, Cottage Grove, OR
(4-1978) Center for Transportation & Commerce, Center for Transportation & Commerce RY #112, Galveston, TX
Disposition: on display [on loan] @ Texas City, TX
Additional Notes:
Displayed at Noble Park, 1100 9th Ave N, Texas City, TX
SLc Survivor List
