Lima Locomotive Works, Inc.
Photo Credit:

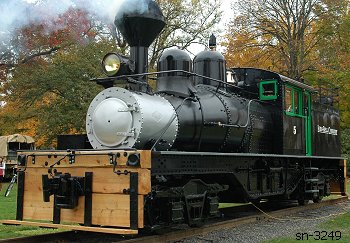

Left: by Cork Koethke (10-25-2013)

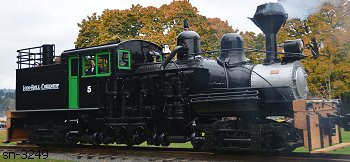

Right: by Sara Koethke (10-25-2013)
Shop Number 3249 - Built for: Security Log. Co.
{2,665th Lima Built Shay}
Built:
1-23-1924
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
5.54
Maximum
Safe Speed:
17.2
Fuel Type:
Oil
Fuel Capacity:
950 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
105,100
Owners:
Security Log. Co. #2, Carnation (Tolt), WA
(7-8-1924) Snow Lbr. & Shingle Co. #2, Littell, WA
(4-1929) Shaw-Bertram Lbr. Co. #5, Kirk, OR
(10-14-1937) Klamath Loco. & Machine Works, Inc. (D), Klamath Falls, OR
(1938) Snellstrom Brothers #5, Vaughn, OR
(1942) Converted to burn wood
(7-9-1945) Long-Bell Lbr. Co. #5, Vaughn, OR
(1955) gift to City of Longview, Longview, WA
Disposition:
(3-1-1998) Removed from display and dissembled at Port of Longview, Longview, WA
Under restoration by John Chilson in Columbia Heights (Longview), WA
(2005) Restoration complete, awaiting building of pavilion cover to return to Longview for display.
(10-15-2013) On display at Longview Public Library
Additional Notes:
SLc Survivor List
