Lima Locomotive Works, Inc.
Photo Credit:

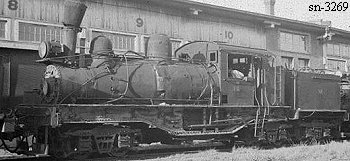

Left: David Thomas collection

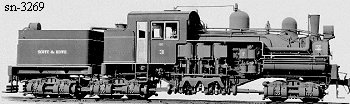

Right: George R. Kadelak collection (BP 10-1924)
Shop Number 3269 - Built for: Scott & Howe Lbr. Co.
{2,685th Lima Built Shay}
Built:
10-14-1924
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.71
Maximum
Safe Speed:

19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
146,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Scott & Howe Lbr. Co. #3, Nagrom, WA
Howe-McGibbon Tbr. Co. #3, Nagrom, WA
(c1934) Maywood Log. Co. #4, Maywood, WA
(5-1-1946) Canadian Forest Products, Ltd. #103 later #114 (in 1957), Englewood, BC, CAN
(5-1959) Atlas Iron & Metals Co. (D), Vancouver, BC, CAN; scrap dealer
Disposition: (5-1959) Scrapped
Additional Notes:
