Lima Locomotive Works, Inc.

Photo Credit:
Both: George R. Kadelak collection (BP 11-1924)

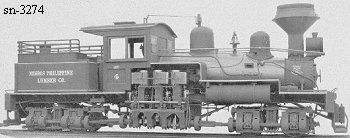

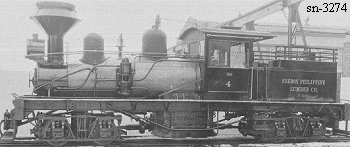

Shop Number 3274 - Built for: The Negros Philippine Lbr. Co.
{2,690th Lima Built Shay}
Built:
11-20-1924
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
42"
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,315 Lbs.
 Factor of
Adhesion:
5.70
 Maximum
Safe Speed:
16.8
Fuel Type:
Wood
Fuel Capacity:
1.25 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
68,400
Owners: (Includes new data after 2018 Shay book completed)
The Negros Philippine Lbr. Co. #4, Iloilo, Cadis, U. S. Territory of the Philippines
(5-10-1938) Philippine Lbr. Mfg. Co. #4, Catabangan, Luzon, U. S. Territory of the Philippines
97-4-1946) Philippine Lbr. Mfg. Co. #4, Catabangan, Luzon, Republic of the Philippines
Disposition: Last reported Stored at Fabrica, Negros Occidental, PI
Additional Notes:
SLc Survivor List
