Lima Locomotive Works, Inc.

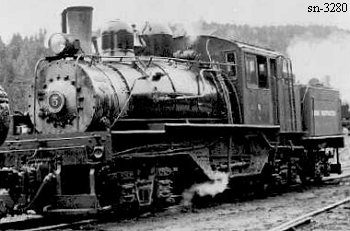

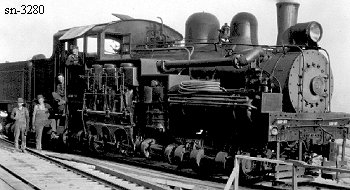

Photo Credit:
Both: BC Archives collection
Shop Number 3280 - Built for: Wood & English Ltd.
{2,696th Lima Built Shay}
Built:
3-9-1925
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
40,407 Lbs.
Factor of
Adhesion:

5.36
Maximum
Safe Speed:

20.9
Fuel Type:
Coal
Fuel Capacity:
6 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
177,300
Owners:
Wood & English Ltd. #5, Englewood, BC, CAN
Beaver Cove Lbr. & Pulp Co. Ltd. #5, Englewood, BC, CAN
(1-1941) Canadian Forest Products Ltd. #5, Englewood, BC, CAN
Disposition: (1956) Scrapped
Additional Notes:
