Lima Locomotive Works, Inc.

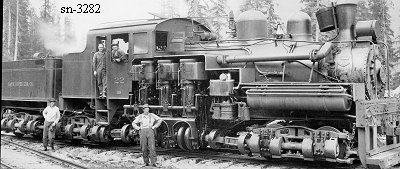

Photo Credit:
Left: Sandy Macham collection
Right: by Darius Kinsey
Shop Number 3282 - Built for: Sauk River Tbr. Co.
{2,698th Lima Built Shay}
Built:
6-1-1925
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
40,407 Lbs.
Factor of
Adhesion:

5.22
Maximum
Safe Speed:

20.9
Fuel Type:
Oil
Fuel Capacity:
1,500 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
177,000
Owners:
Sauk River Lbr. Co. #22, Darrington, WA
Victoria Lbr. & Mfg. Co., Ltd. #12, Chemainus, BC, CAN
(5-9-1944) Victoria Lbr. Co., Ltd. #12 later (in 1950) #1012, Chemainus, BC, CAN
(10-1-1951) MacMillan & Bloedel Ltd. #1012, Chemainus, BC, CAN
Disposition: Scrapped
Additional Notes: (1950) Victoria Lbr. Co., Ltd. Shays renumbered when radios were added
