Lima Locomotive Works, Inc.

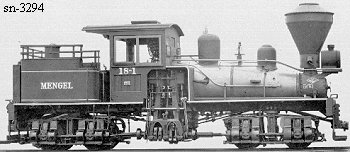

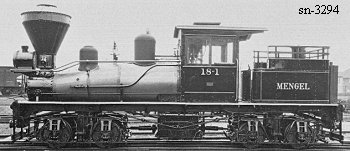

Photo Credit:
Both: George R. Kadelak collection (BP 12-1925)
Shop Number 3294 - Built for: The Mengel Co.
{2,709th Lima Built Shay}
Built:
12-2-1925
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
7,880 Lbs.
 Factor of
Adhesion:
6.00
Maximum
Safe Speed:
10.7
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
730 Gallons
Empty Weight:
As built
40,205
Owners:
The Mengel Co. #18-1, Vaca Falls, Belize, British Honduras
Disposition: Scrapped
Additional Notes:
