Lima Locomotive Works, Inc.
Photo Credit:

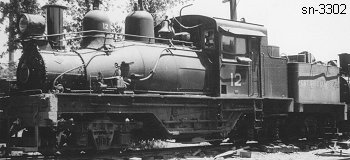

Left:John Henderson collection (6-1959)

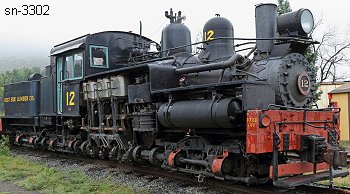

- Right: by Jeff Terry (9-2013)
Shop Number 3302 - Built for: Swayne Lbr. Co.
{2,717th Lima Built Shay}
Built:
4-21-1926
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 44.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
25,820 Lbs.
 Factor of
Adhesion:
5.20
Maximum
Safe Speed:
15.1
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
113,500
Owners:
Swayne Lbr. Co. #6, Oroville, CA
(1929) Homemade piston valves applied 1929
( 3-6-1940) West Side Lbr. Co., #12, Tuolumne, CA
(1968) West Side & Cherry Valley RR #12, Tuolumne, CA
(5-1986) Georgetown Loop RR, Inc., Georgetown Loop RR #12, Silver Plume, CO
(11-2-2004) Moved to storage, Colorado Railroad Museum, Golden, CO
Disposition: stored @ Colorado Railroad Museum, Golden CO
Additional Notes:
(1929) home-made piston valves installed
