Lima Locomotive Works, Inc.

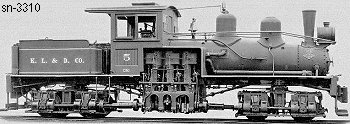

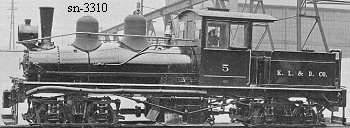

Photo Credit:
Both: George R. Kadelak collection (BP 4-1927)
Shop Number 3310 - Built for: Millars Tbr. & Trading Co.
{2,725th Lima Built Shay}
Built:
4-6-1927
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
42"
Boiler:
[Style - Dia.]
E.W.T. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
12,199 Lbs.
 Factor of
Adhesion:
5.07
 Maximum
Safe Speed:
11.2
Fuel Type:
Coal
Fuel Capacity:
2.5 Tons
Water Capacity:
850 Gallons
Empty Weight:
As built
48,900
Owners: (Includes new data after 2018 Shay book completed)
Millars Tbr. & Trading Co. #5, Kolambugan, Mindanao, U. S. Territory of the Philippines
Kolambugan Lbr. & Development Co. #5, Kolambugan, Mindanao, U. S. Territory of the Philippines
(5-10-1938) Findley-Millar Tbr. Co. #5, Kolambugan, Mindanao, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes:
