Lima Locomotive Works, Inc.

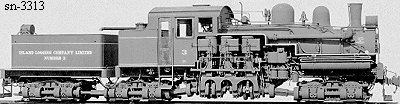

Photo Credit:
George R. Kadelak collection (BP 7-1927)
Shop Number 3313 - Built for: Island Log. Co.
{2,728th Lima Built Shay}
Built:
7-20-1927
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
40,407 Lbs.
Factor of
Adhesion:

5.29
Maximum
Safe Speed:

20.9
Fuel Type:
Oil
Fuel Capacity:
1,500 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
179,900
Owners:
Island Log. Co. #3, Duncan, BC, CAN
(10-1-1936) Malahat Log. Co. Ltd. #3, Port Renfrew, BC, CAN
(12-13-1946) British Columbia Forest Products, Ltd. #6, Youbou, BC, CAN
Disposition: (1957) Scrapped
Additional Notes:
