Lima Locomotive Works, Inc.

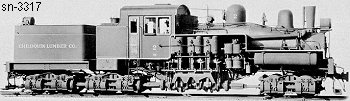

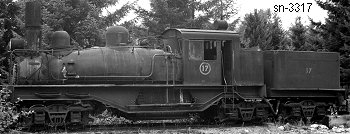

Photo Credit:
Left: David Thomas collection
Right: George R. Kadelak collection (BP 2-1928)
Shop Number 3317 - Built for: Lima Locomotive Works, Inc.
{2,732nd Lima Built Shay}
Built:
2-16-1928
Class:
3-PC-13
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.41
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
38,183 Lbs.
Factor of
Adhesion:

4.86
Maximum
Safe Speed:

17.8
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
158,400
Owners:
Lima Locomotive Works, Inc., Lima, OH, built for stock
Hofius Steel & Equip.t Co. (D), Seattle, WA
(1928) Chiloquin Lbr. Co. #2, Chiloquin, OR
Chiloquin Lbr. Co. #2, Mazama, OR
(1-27-1937) For sale through Washington Machinery and Storage Co.
Weyerhaeuser Tbr. Co. #4, Longview, WA
(10-1947) British Columbia Forest Products Ltd. #17, Youbou, BC, CAN
Disposition: (10-1959) Scrapped
Additional Notes:
