Lima Locomotive Works, Inc.

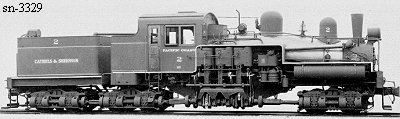

Photo Credit:
Left: Hemmingen family collection (c1940) - Right: George R. Kadelak collection (BP 1-1929)
Shop Number 3329 - Built for: Cathels & Sorenson
{2,744th Lima Built Shay}
Built:
1-19-1929
Class:
3-PC-13
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.41
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
38,183 Lbs.
Factor of
Adhesion:

4.85
Maximum
Safe Speed:

17.8
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
157,900
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Cathels & Sorenson #2, Port Renfrew, BC, CAN
(1934) Renfrew Log. Co. #2, Port Renfrew, BC, CAN
(10-1-1936) Hemmingsen-Cameron Co., Ltd. #2, Port Renfrew, BC, CAN
(10-1946) British Columbia Forest Products, Ltd. #2, Youbou, BC, CAN
Disposition: only 3-PC-13 built to burn coal and oil
(1954) Scrapped by Northern Junk Co., Victoria, BC, CAN
Additional Notes: Both of the builders plates survive in seperate private collections.
