Lima Locomotive Works, Inc.

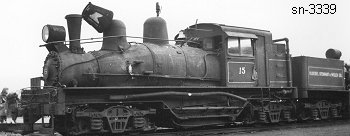

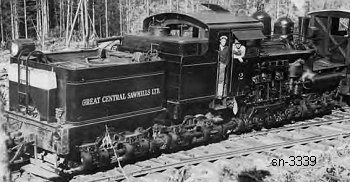

Photo Credit:
Left: John Henderson collection
Right: University of Washington collection
Shop Number 3339 - Built for: Eagle Lake Spruce Mills Ltd.
{2,753rd Lima Built Shay}
Built:
8-6-1929
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
25,820 Lbs.
Factor of
Adhesion:

5.50
Maximum
Safe Speed:

15.1
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
121,200
Owners:
Eagle Lake Spruce Mills Ltd. #2, Giscome, BC, CAN
(11-20-1933) Great Central Sawmills, Ltd.. #2, Great Central, BC, CAN
(4-1-1937) Bloedel, Stewart & Welch Ltd. #2 later #15, Franklin River, BC, CAN
(12-1939) Wrecked with heavy damage
(12-1939) Bloedel, Stewart & Welch Ltd. #15, Menzies Bay , BC, CAN
(5-6-1940) Repaired a used at Menzies Bay
(1953) Bloedel, Stewart & Welch Ltd. #15, Vancouver, BC, CAN
Disposition: (1954) Scrapped
Additional Notes:
