Lima Locomotive Works, Inc.

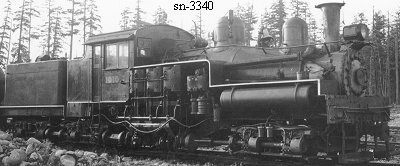

Photo Credit:
by Bert Ward (c1950-51)
Shop Number 3340 - Built for: Lima Locomotive Works, Inc.
{2,754th Lima Built Shay}
Built:
9-12-1929
Class:
3-PC-13
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.41
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
38,183 Lbs.
Factor of
Adhesion:

4.93
Maximum
Safe Speed:

17.8
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
161,000
Owners:
Lima Locomotive Works, Inc., Lima, OH, built for stock
Hofius Steel & Equip.Co. (D), Seattle, WA
Island Log. Co. Ltd. #4, Duncan, BC, CAN
Canadian Puget Sound Lbr. & Tbr. Co. #4, Duncan, BC, CAN
(6-6-1935) Victoria Lbr. & Mfg. Co., Ltd. #10, Chemainus, BC, CAN
(5-9-1944) Victoria Lbr. Co., Ltd. #10 later (in 1950) #1010, Chemainus, BC, CAN
(10-1-1951) MacMillan & Bloedel Ltd. #1010, Chemainus, BC, CAN
Disposition: (7-20-1953) Scrapped
Additional Notes: (1950) Victoria Lbr. Co., Ltd. Shays renumbered when radios were added
